Product Name: FSD Series 3D Four-Wheel Positioning Instrument: Double Screen Display Four-Plate Interchangeable V3D Four-Wheel Positioning Instrument

Model: 3D FSD -300B

Automobile four wheel locator;

Origin: China - Zhuhai:

Registered trademark: FSD-300B, Zhuhai.

The appearance of the product is as follows: (main color is red)

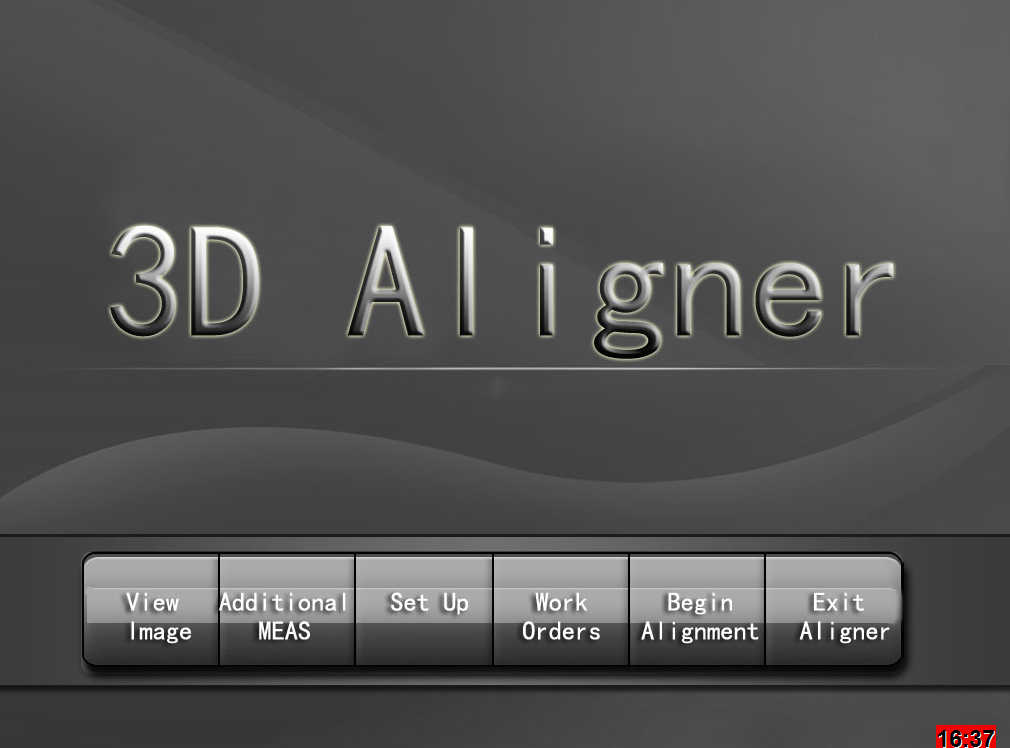

The software uses WIN8-32-bit operating system, Lenovo brand computer, this software supports four boards interchangeable use. This software is only one of the positioner products, there are six different types of software used in the product and obtained a patent certificate in China.

The software registration certificate and the operation area are as follows:
1., this product mainly uses the integration computer, the genuine WIN8-32 bit operating system, the aluminum alloy column obvious high. The cabinet adopts movable column height adjustable chassis, convenient fixed height; the camera uses SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual software algorithm technology, simple operation, fast read data; 3D dynamic image display operating guidelines guide roll compensation, the amount of operation; short distance micro cart, wheelbase and track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular calibration; Aluminum Alloy angle disc facilitate inspection direction based parameters and the front wheel angle and other parameters; super database, free for a year to update the database file at a time; the products by ISO quality system and the European CE safety certification.
2. aluminum alloy beams are treated by full surface oxidation. The assembly consists of two cameras, a light plate and a lens system. The columns are manually mounted and adjustable at different heights.
3. main technical parameters of products
Location parameter Accuracy (center value) Accuracy range Maximum measuring range
Display accuracy and measurement accuracy ±0.01°/0.01mm Measurement repeatability±0.01°or0.01mm
Toe ±0.015° ±0.01° ±30°
Dip angle ±0.025° ±0.01° ±30°
Kingpin inclination ±0.025° ±0.01° ±15°
Kingpin inclination ±0.025° ±0.01° ±20°
thrust angle ±0.015° ±0.01° ±6°
Maximum turning angle ±0.015° ±0.01° ±30°
Recession angle ±0.015° ±0.01° ±6°
Tread ±0.25cm ±0.01° 3000mm
Wheelbase ±0.25cm ±0.01° 8000mm
diagonal ±2mm ±0.3cm 12000mm
Rolling radius ±2mm ±0.3cm 700mm
3.Standard accessories are as follows:
Product accessory name Matching number Product accessory name Number of parts Remarks
Aluminum alloy Liang Zongcheng 1 Cabinet, column assembly 1
Aluminum alloy corner plate 2 Four point fixture 4
Direction fixing bracket 1 Front and rear wheel stop 4
Computer host 1 Monitor 1 18.5inch
keybord, mouse 1 Whole wire harness 1
Liang Zongcheng coupling 1 Column seat 1
Column cap 1 Fixture hanger 4
3 main features of the product

0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

0.3. Measurement accuracy in the industry first-class;

0.4. Software supports a variety of reflective patterns;

0.5. The product has passed ISO quality system certification and export CE certification;

0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

0.8. The software is easy to operate, easy to use, intuitive 3D display

0.9. National UNPROFOR, remote service system

10. All over the country are equipped with after-sales service outlets, remote technical support

11. Regular return visit system of products, continuous innovation, once a year free update data packets

12. The product is specially designed for the drainage design. It is convenient to check the data

13) free training staff

14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

15. Automatic calculation of body parameters and rolling compensation body parameters

16. Software intuitive response to the four round of the condition and need to solve the problem of repair
