Product Name: 42 inch dual display board four interchangeable f.s.d (FSD) 3D four wheel aligner
Model: 3D FSD-300H
Four wheel positioning device for 3D automobile;
Origin: China - Zhuhai:
Registered trademark: f.s.d (FSD)
Zhuhai Richstar (FSD-300H) using genuine WIN8-32 operating system, six languages,

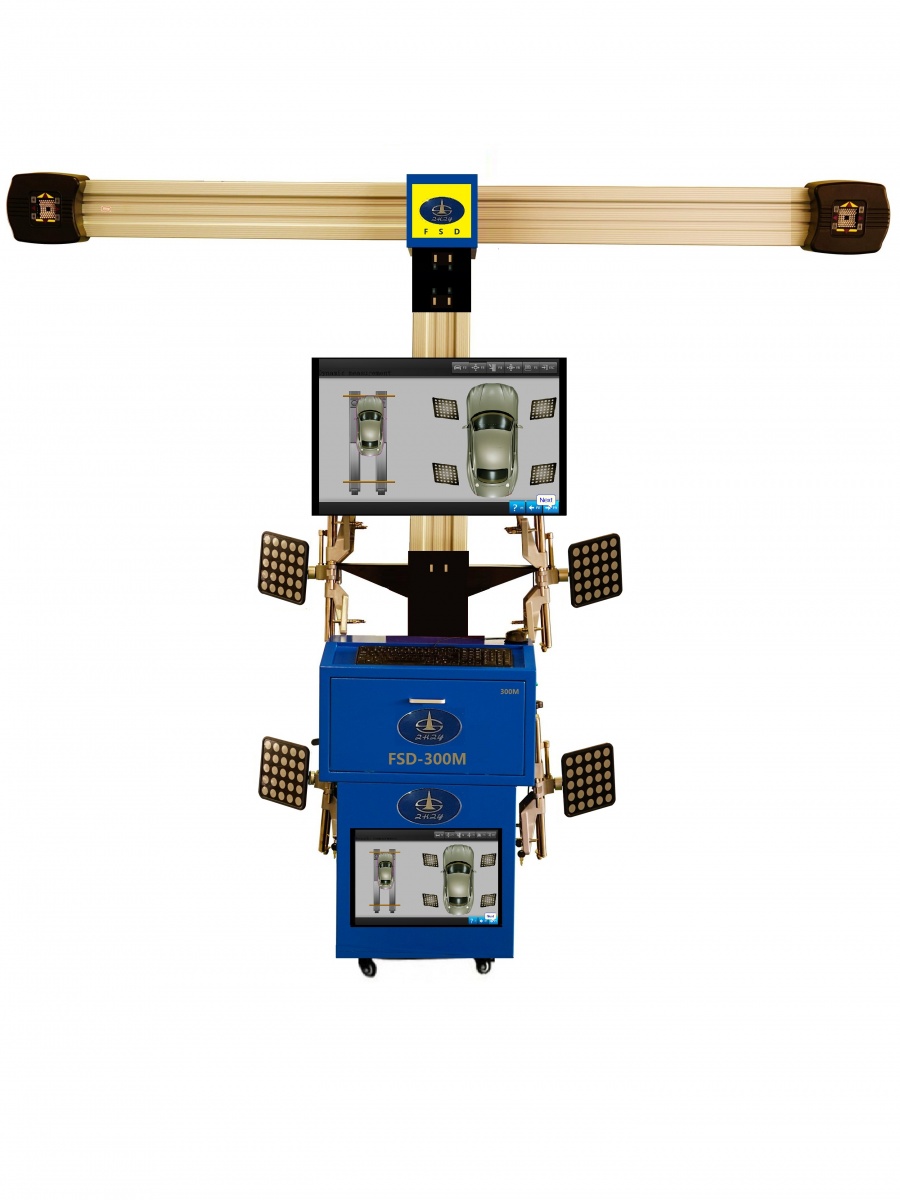

The product appearance picture is as follows: (main color blue cabinet, redwood furniture color aluminum alloy column)

The software uses WIN8-32-bit operating system, Lenovo brand computer, this software supports four boards interchangeable use. This software is only one of the positioner products, there are six different types of software used in the product and obtained a patent certificate in China.

The software registration certificate and the operation area are as follows:


1 product features: the use of Aluminum Alloy party as column, surface oxidation of mahogany furniture color, Aluminum Alloy beam by oxidation Aluminum Alloy full integration, cabinet column fixed design, imported SONY camera, HDMI HD display data.
  • Mian  technical parameters
Location parameter Accuracy (center value) Accuracy range Maximum measuring range
Toe ±0.01°/0.01mm Measurement repeatability±0.01°or0.01mm
Dip angle ±0.015° ±0.01° ±30°
Kingpin inclination ±0.025° ±0.01° ±30°
Kingpin inclination ±0.025° ±0.01° ±15°
thrust angle ±0.025° ±0.01° ±20°
Maximum turning angle ±0.015° ±0.01° ±6°
Recession angle ±0.015° ±0.01° ±30°
Tread ±0.015° ±0.01° ±6°
Wheelbase ±0.25cm ±0.01° 3000mm
diagonal ±0.25cm ±0.01° 8000mm
Rolling radius ±2mm ±0.3cm 12000mm
Location parameter ±2mm ±0.3cm 700mm

3.Standard accessories are as follows:
Product accessory name Number of parts Product accessory name Number of parts Remarks
Aluminum alloy Liang Zongcheng 1 Cabinet, column assembly 1
Aluminum alloy corner plate 2 Four point fixture 4
Direction fixing bracket 1 Front and rear wheel stop 4
Computer host 1 Monitor 2 32/18.5inch
Keyboard, mouse 1 Whole wire harness 1
Liang Zongcheng coupling 1 Column seat 1
Column cap 1 Fixture hanger 4
4 main features of the product

0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

0.3. Measurement accuracy in the industry first-class;

0.4. Software supports a variety of reflective patterns;

0.5. The product has passed ISO quality system certification and export CE certification;

0.6.Guan Jian reflector plate shell, camera cover are made of ABS material specialized production, to ensure product         quality

0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

0.8. The software is easy to operate, easy to use, intuitive 3D display

0.9. National UNPROFOR, remote service system

10. All over the country are equipped with after-sales service outlets, remote technical support

11. Regular return visit system of products, continuous innovation, once a year free update data packets

12. The product is specially designed for the drainage design. It is convenient to check the data

13) free training staff

14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine

15. Automatic calculation of body parameters and rolling compensation body parameters

16. Software intuitive response to the four round of the condition and need to solve the problem of repair

The above products need to complete the printer, notebook computer, non-standard display size, tablet PC for the selection of accessories
