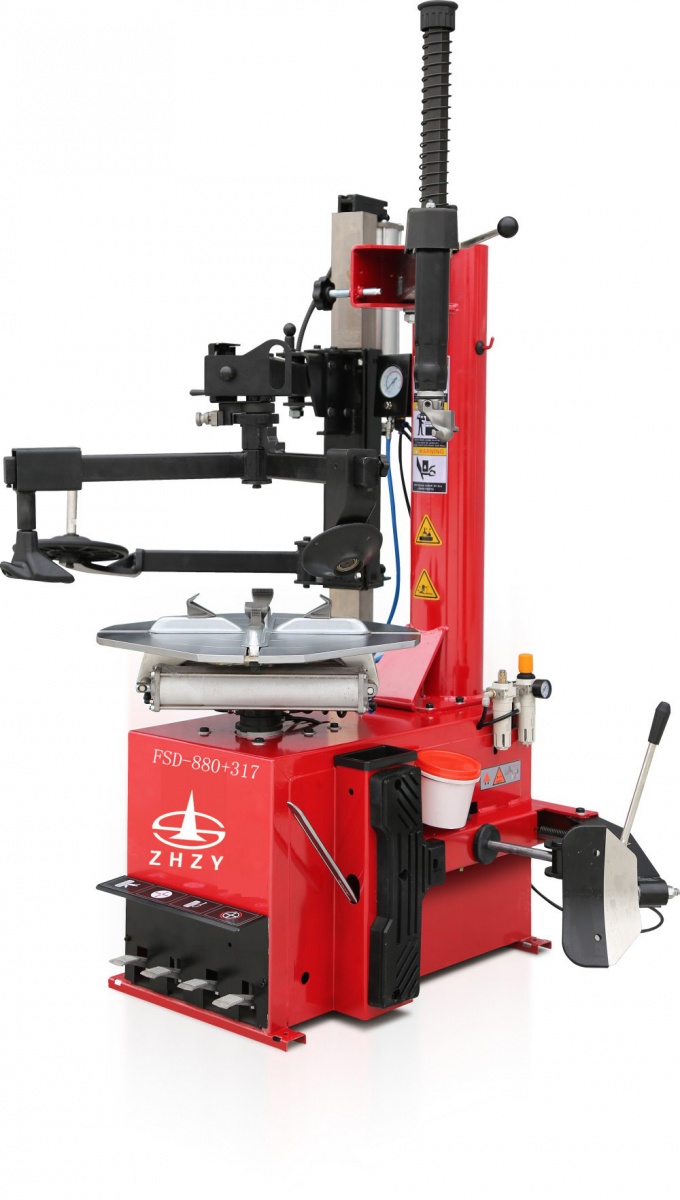

Item name: car tyre dismounting machine (optional non disc type)
Item number: ZHZY-880317
Origin: Zhuhai
Registered trademark: Zhuhai hawk (ZHZY)
Technical parameter:
Outer rim: 10 "-24""
Inner rim: 12 "-26""
Maximum diameter of wheel: 1040 mm
Maximum wheel width: 3 "-15""
Working pressure: 8-10bar
Power source: 380V/220v/110v
Motor power: 1.0kw/1.5kw
Equipment weight: 300kg
Scope of application:
This product is suitable for all kinds of small and medium-sized cars, wheel diameter of 10 "-26" of the automatic disassembly and assembly of tires.
Product features:
This product is our company's patented products, called "speed tire dismantling machine", with all the functions of the traditional double-sided mechanical hand, and small footprint, transportation costs less.
Product performance:
1. automatic positioning system of swing arm, automatic positioning system of press arm, so that the manipulator swing arm is convenient and quick to locate.
2. center positioning device, accurate positioning, easy clamping claws, smooth clamping wheel rim.
3., the pressure wheel arm can rotate 360 degrees, change the machine wheel positioning knob, arrow direction can be left and right automatic positioning, left positioning can automatically support the fetus, right positioning can automatically on the tire, tire more convenient.
4. when the tire is dismantled, the placenta can be used to support the tyre, and the time and effort are saved when the tyre is removed.
5., speed tire dismantling machine, power hand for the state authorized patent.
6. change the range of the clip rim by adjusting the position of the boat.
7. turntable automatic centering, four jaw movement structure for the connecting rod structure, with synchronous performance, from external to internal clamp, self centering.
A design of forming processing machine structure 8. mobile card, make it not easy to deformation.
9. the work head is plated with hard chromium on the high frequency quenching surface to ensure the strength, toughness and wear resistance.
10. work turntable with synchronous centering and fine-tuning function, so that the disassembly and assembly of the tire more smoothly.
11. and head, claws, and crowbars shovel tire pressure tire contact tools are equipped with a protective sleeve and a protective pad, guarantee not to damage the rim.
12., the body dignified, plate thick, rigid super.
Product quality:
This product reaches the ISO9001-2008 quality system standard and the European Union quality standard, obtains the export European Union CE authentication certificate.
